产品中心
专业 LED 模组产品系列，专业 LED 开关电源产品系列，为各种应用场景提供高品质照明解决方案
LED 模组产品系列
高品质 LED 模组，适用于各种发光字和灯箱应用

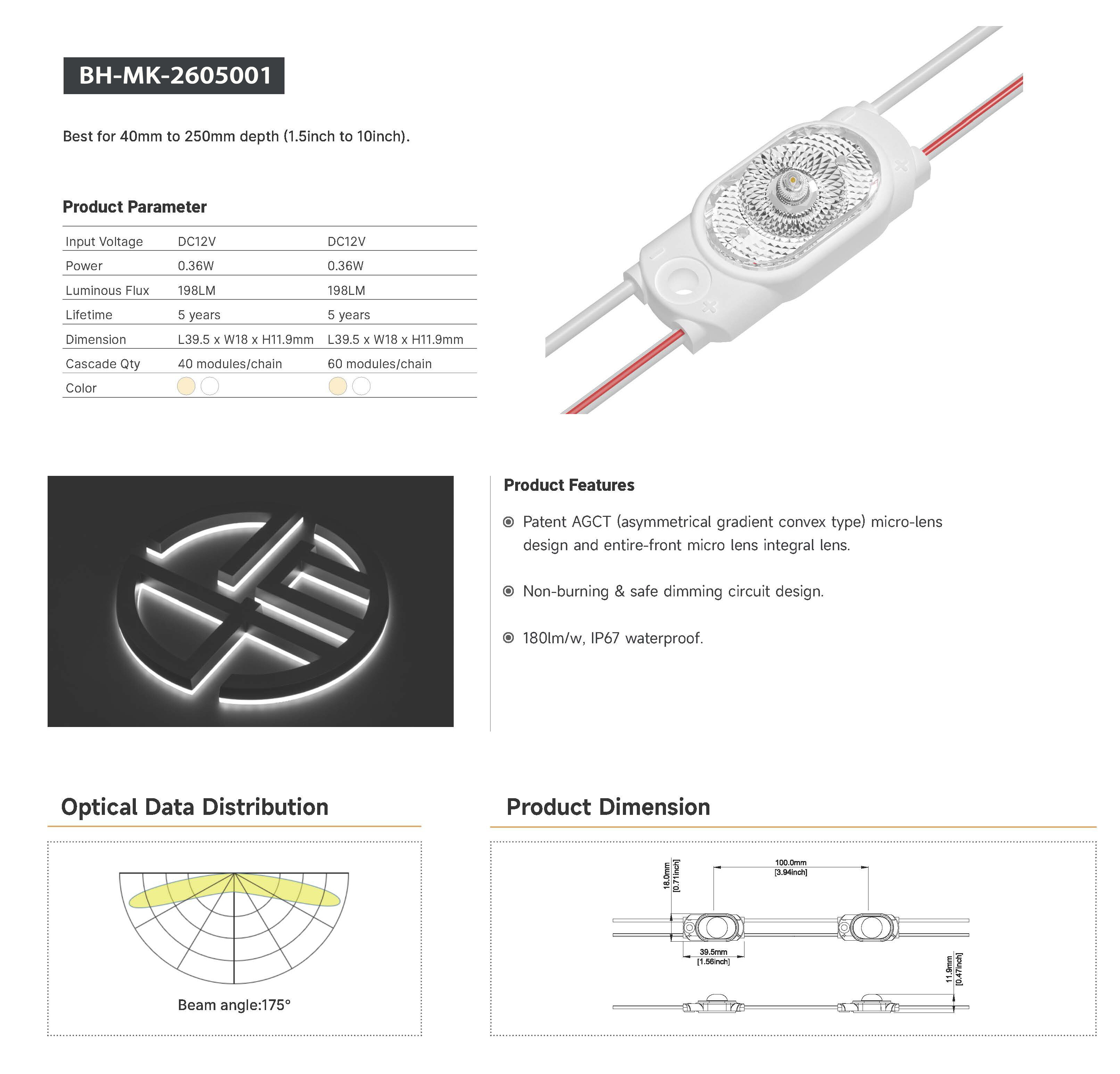

BH-MK-2605001
LED 模组 BH-MK-2605001
Best for 40mm to 250mm depth (1.5inch to 10inch)
Product Parameter
Input VoltageDC12V
Efficiency
Output Voltage
Current
Working Temperature
DimensionL39.5 x W18 x H11.9mm
Power0.36W
Luminous Flux198LM
Lifetime5 years
Cascade Qty40/60 modules/chain
Beam Angle175°
Product Features
- Patent AGCT (asymmetrical gradient convex type) micro-lens design and entire-front micro lens integral lens
- Non-burning & safe dimming circuit design
- 180lm/w, IP67 waterproof

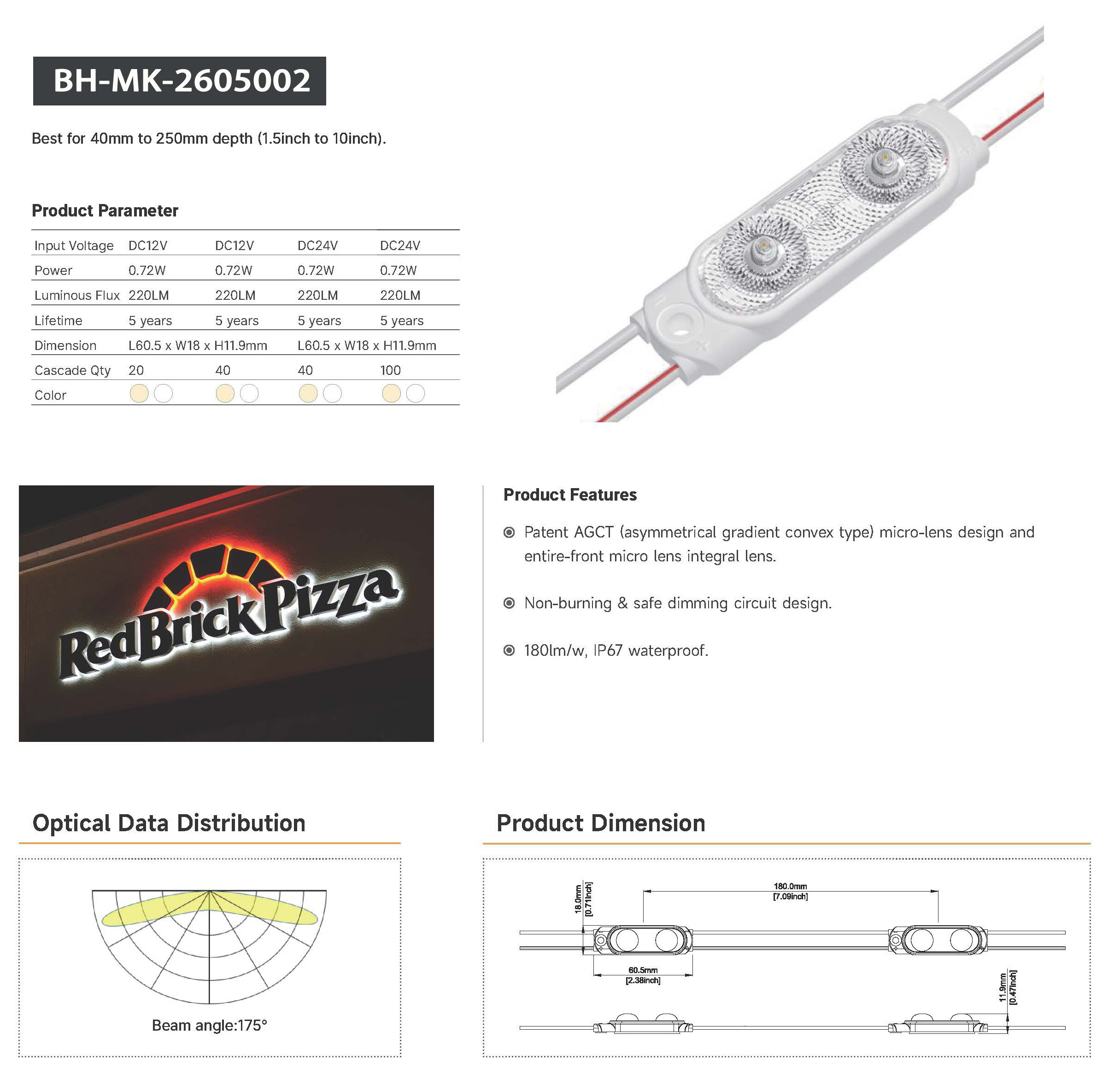

BH-MK-2605002
LED 模组 BH-MK-2605002
Best for 40mm to 250mm depth (1.5inch to 10inch)
Product Parameter
Input VoltageDC12V/DC24V
Efficiency
Output Voltage
Current
Working Temperature
DimensionL60.5 x W18 x H11.9mm
Power0.72W
Luminous Flux220LM
Lifetime5 years
Cascade Qty20/40/40/100
Beam Angle175°
Product Features
- Patent AGCT (asymmetrical gradient convex type) micro-lens design and entire-front micro lens integral lens
- Non-burning & safe dimming circuit design
- 180lm/w, IP67 waterproof

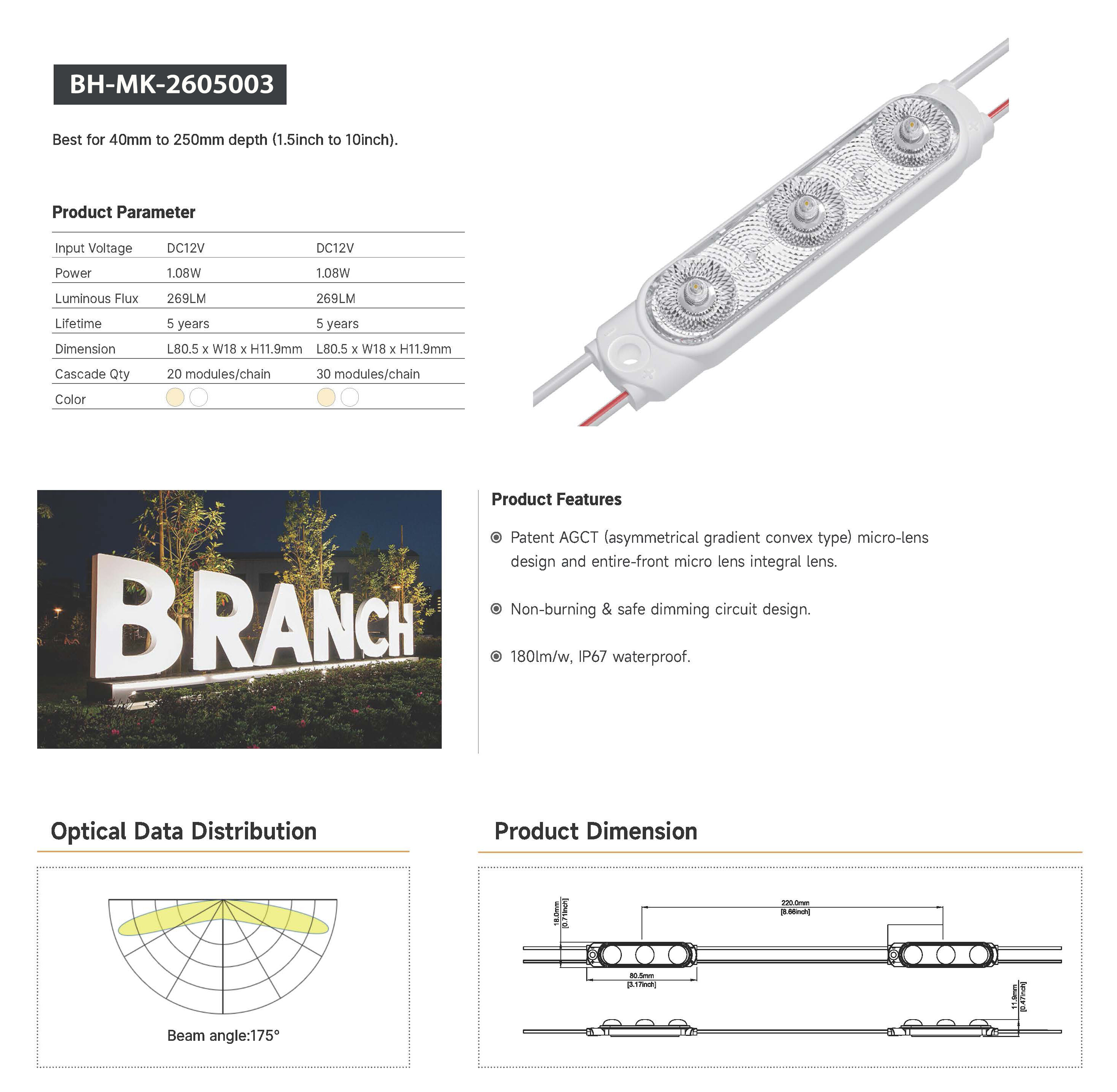

BH-MK-2605003
LED 模组 BH-MK-2605003
Best for 40mm to 250mm depth (1.5inch to 10inch)
Product Parameter
Input VoltageDC12V
Efficiency
Output Voltage
Current
Working Temperature
DimensionL80.5 x W18 x H11.9mm
Power1.08W
Luminous Flux269LM
Lifetime5 years
Cascade Qty20/30 modules/chain
Beam Angle175°
Product Features
- Patent AGCT (asymmetrical gradient convex type) micro-lens design and entire-front micro lens integral lens
- Non-burning & safe dimming circuit design
- 180lm/w, IP67 waterproof

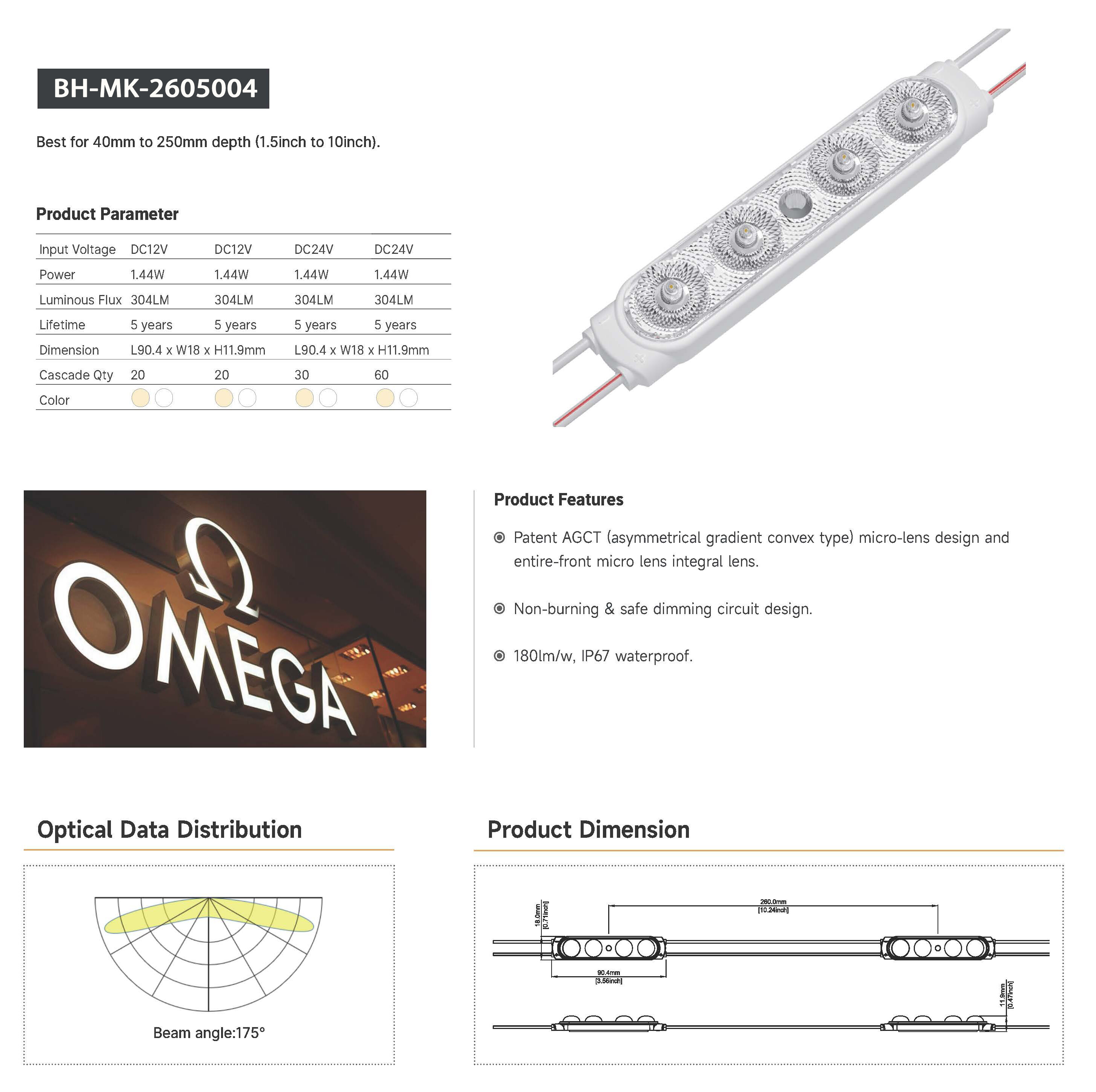

BH-MK-2605004
LED 模组 BH-MK-2605004
Best for 40mm to 250mm depth (1.5inch to 10inch)
Product Parameter
Input VoltageDC12V/DC24V
Efficiency
Output Voltage
Current
Working Temperature
DimensionL90.4 x W18 x H11.9mm
Power1.44W
Luminous Flux304LM
Lifetime5 years
Cascade Qty20/20/30/60
Beam Angle175°
Product Features
- Patent AGCT (asymmetrical gradient convex type) micro-lens design and entire-front micro lens integral lens
- Non-burning & safe dimming circuit design
- 180lm/w, IP67 waterproof

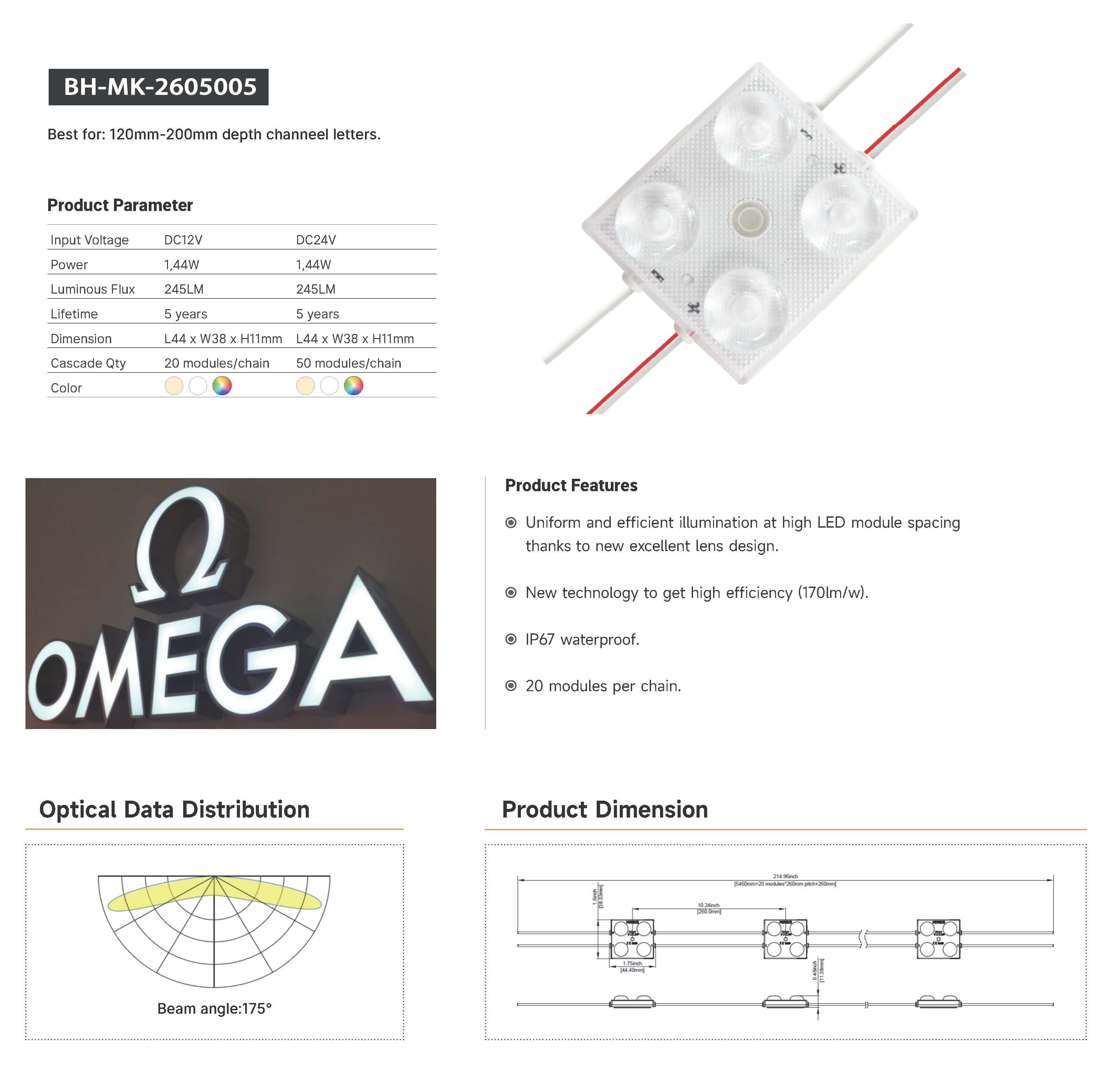

BH-MK-2605005
LED 模组 BH-MK-2605005
Best for 120mm-200mm depth channel letters
Product Parameter
Input VoltageDC12V/DC24V
Efficiency
Output Voltage
Current
Working Temperature
DimensionL44 x W38 x H11mm
Power1.44W
Luminous Flux245LM
Lifetime5 years
Cascade Qty20/50 modules/chain
Beam Angle175°
Product Features
- Uniform and efficient illumination at high LED module spacing thanks to new excellent lens design
- New technology to get high efficiency (170lm/w)
- IP67 waterproof
- 20 modules per chain
LED 开关电源产品系列
高效节能 LED 驱动电源，功率从 30W 到 300W，满足各种照明需求
BH-QD-30W
LED 开关电源 BH-QD-30W
Product Parameter
Input VoltageAC200-240 50/60Hz
IP CodeIP67
Efficiency≥86% at 220V AC (at full load)
Output Voltage12/24V DC (±5%)
Current2.5A / 1.25A
Working Temperature-40°C / +50°C (at full load)
Dimension169*33.5*23.5mm

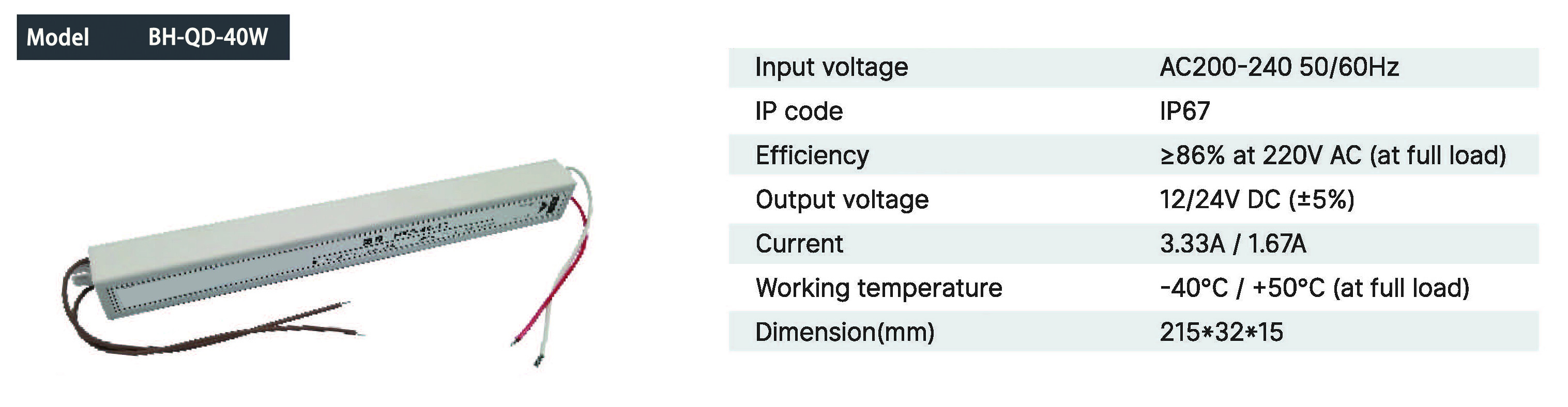

BH-QD-40W
LED 开关电源 BH-QD-40W
Product Parameter
Input VoltageAC200-240 50/60Hz
IP CodeIP67
Efficiency≥86% at 220V AC (at full load)
Output Voltage12/24V DC (±5%)
Current3.33A / 1.67A
Working Temperature-40°C / +50°C (at full load)
Dimension215*32*15mm

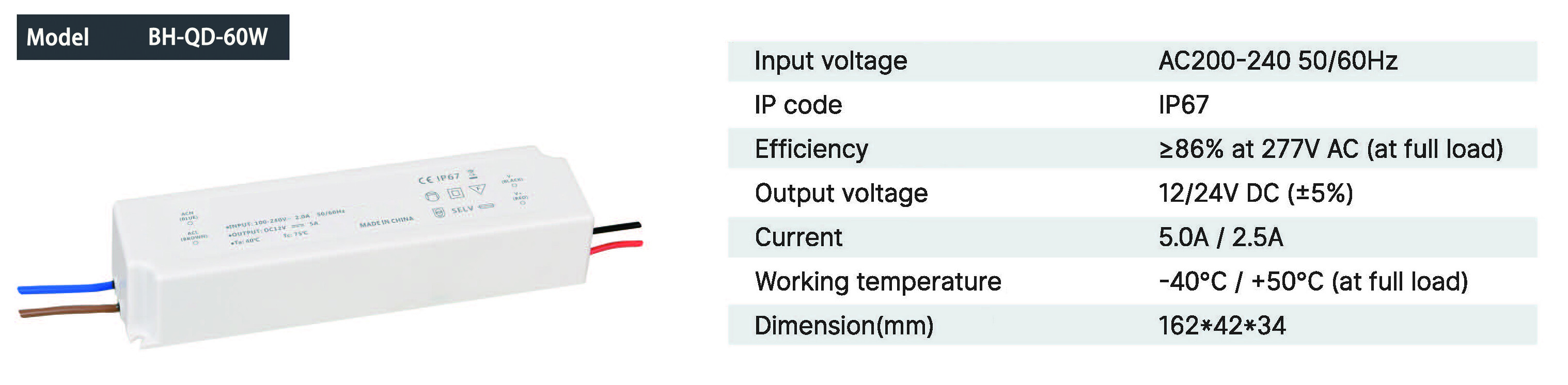

BH-QD-60W
LED 开关电源 BH-QD-60W
Product Parameter
Input VoltageAC200-240 50/60Hz
IP CodeIP67
Efficiency≥86% at 277V AC (at full load)
Output Voltage12/24V DC (±5%)
Current5.0A / 2.5A
Working Temperature-40°C / +50°C (at full load)
Dimension162*42*34mm

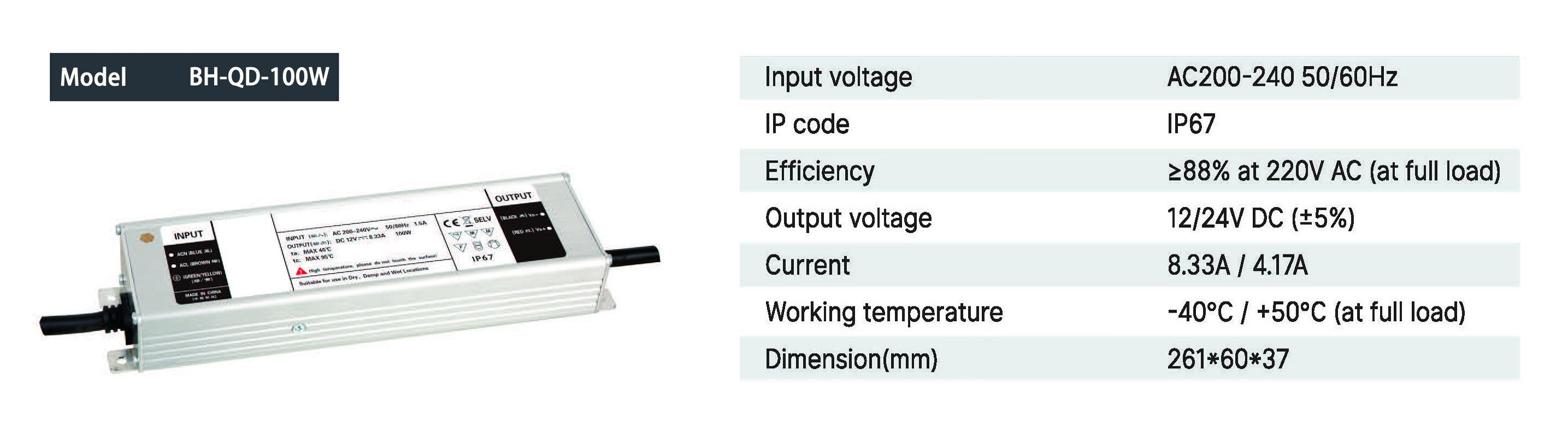

BH-QD-100W
LED 开关电源 BH-QD-100W
Product Parameter
Input VoltageAC200-240 50/60Hz
IP CodeIP67
Efficiency≥88% at 220V AC (at full load)
Output Voltage12/24V DC (±5%)
Current8.33A / 4.17A
Working Temperature-40°C / +50°C (at full load)
Dimension261*60*37mm

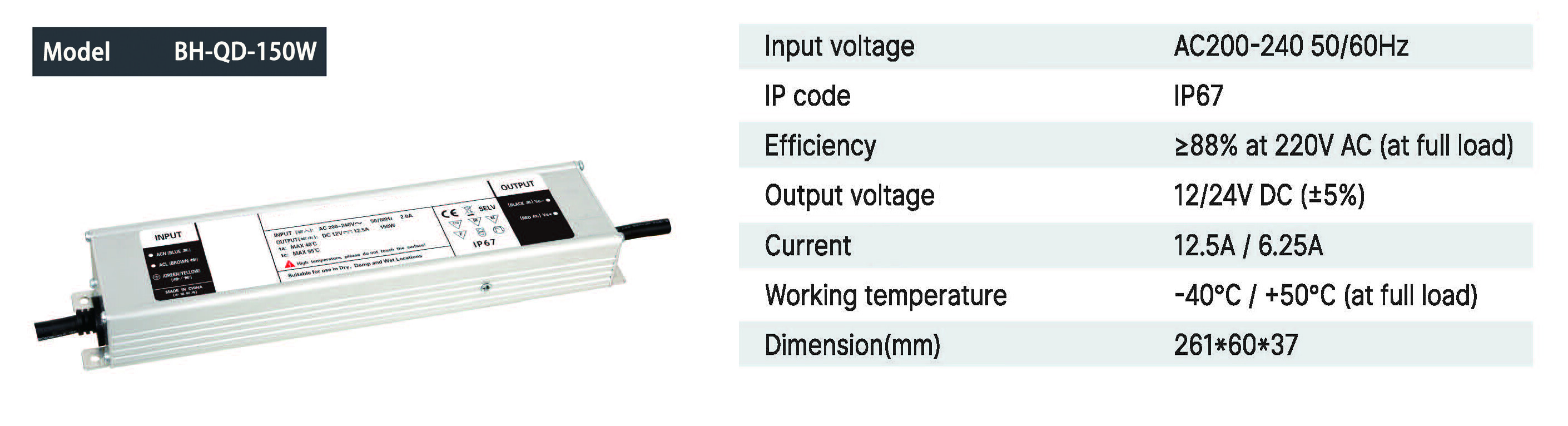

BH-QD-150W
LED 开关电源 BH-QD-150W
Product Parameter
Input VoltageAC200-240 50/60Hz
IP CodeIP67
Efficiency≥88% at 220V AC (at full load)
Output Voltage12/24V DC (±5%)
Current12.5A / 6.25A
Working Temperature-40°C / +50°C (at full load)
Dimension261*60*37mm

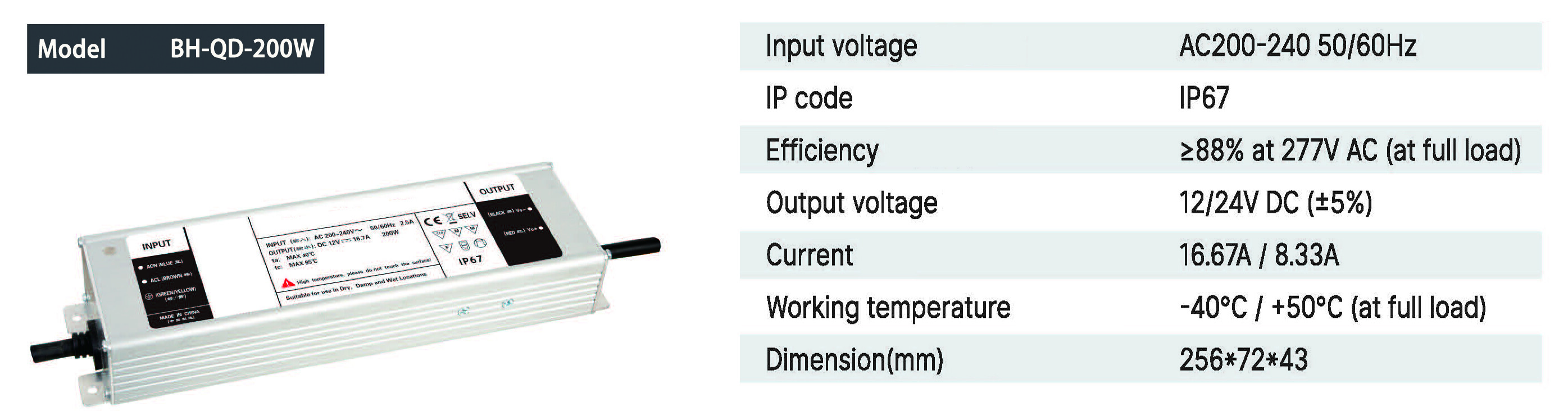

BH-QD-200W
LED 开关电源 BH-QD-200W
Product Parameter
Input VoltageAC200-240 50/60Hz
IP CodeIP67
Efficiency≥88% at 277V AC (at full load)
Output Voltage12/24V DC (±5%)
Current16.67A / 8.33A
Working Temperature-40°C / +50°C (at full load)
Dimension256*72*43mm

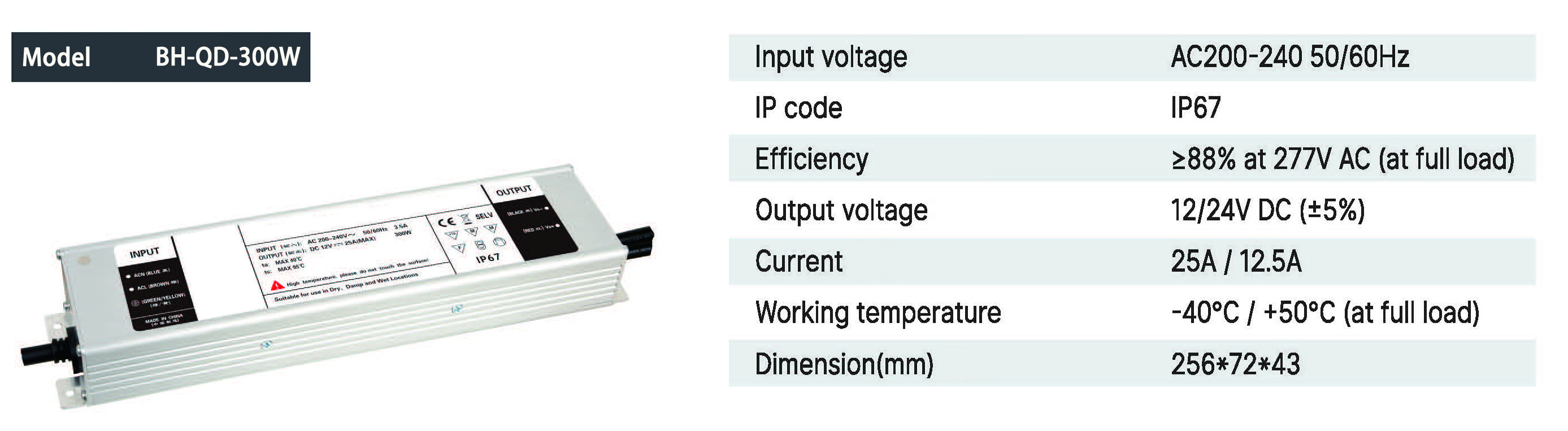

BH-QD-300W
LED 开关电源 BH-QD-300W
Product Parameter
Input VoltageAC200-240 50/60Hz
IP CodeIP67
Efficiency≥88% at 277V AC (at full load)
Output Voltage12/24V DC (±5%)
Current25A / 12.5A
Working Temperature-40°C / +50°C (at full load)
Dimension256*72*43mm

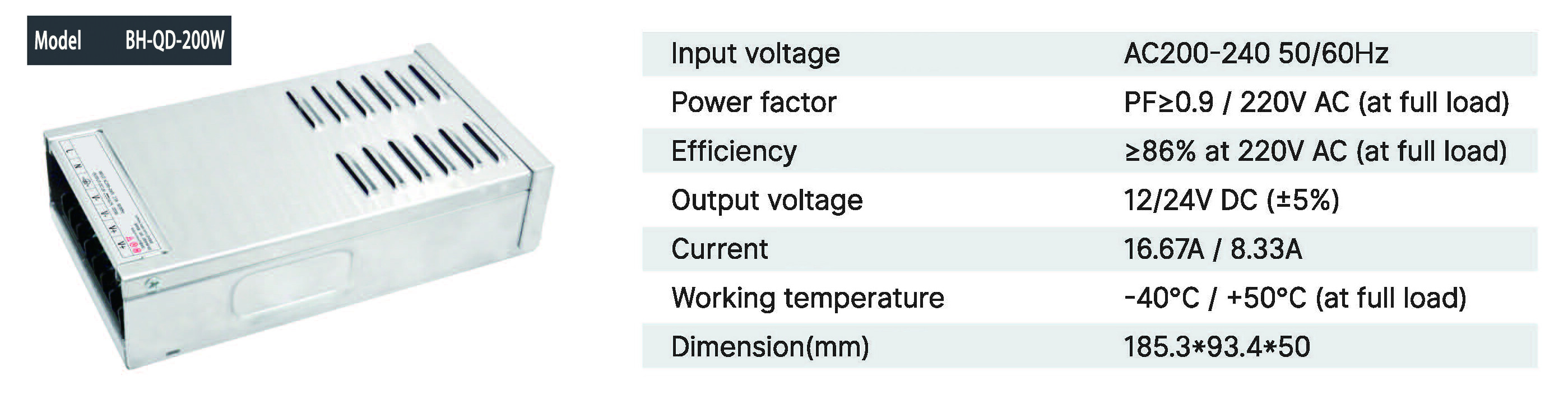

BH-QD-200W (Metal Case)
LED 开关电源 BH-QD-200W (金属外壳)
Product Parameter
Input VoltageAC200-240 50/60Hz
Power FactorPF≥0.9 / 220V AC (at full load)
Efficiency≥86% at 220V AC (at full load)
Output Voltage12/24V DC (±5%)
Current16.67A / 8.33A
Working Temperature-40°C / +50°C (at full load)
Dimension185.3*93.4*50mm
